# MOVEIT

---

## MoveIt Capabilities

- Motion Planning
    - Generate high-degree of freedom trajectories through
      cluttered environments and avoid local minima
- Manipulation
    - Analyze and interact with the environment with grasp generation
- Inverse Kinematics
    - Solve for joint positions for a given pose, even in over-actuated arms
- Control
    - Execute time-parameterized joint trajectories to low level hardware
controllers through common interfaces
- 3D Perception
    - Connect to depth sensors and point clouds with Octomaps
- Collision Checking
    - Avoid obstacles using geometric primitives, meshes, or point clouds

---

## Timeline

![evolution width:900](../static/evolution.png)

---

## Why ROS 2 vs ROS 1?

- Realtime capabilities now available
- Designed for production - same support for R&D
- Multi-platform: Linux, Windows, macOS

---

## Milestones

- M1: Straight port to ROS 2
    - Fully migrate existing packages to ROS 2
    - Leverage ROS 2 features: build (ament), middleware, logging, parameters

- M2: Real-time support
    - Reactive, closed-loop control to sensor input
    - Hybrid planning (global and local)
    - Zero-memory copy integration to controllers

- M3: Fully leverage ROS 2
    - Lifecycle management of MoveIt nodes
    - Leverage ROS 2 component nodes
---

## Real-time capabilities
(Milestone 2)

Realtime-safety is required for online robot manipulations:
- Complex interactions with environment with forces, torques
    - Pushing, polishing, screwing
- Enables:
    - Reactive Closed-loop control
    - High rate joint command streaming (e.g. >1 kHz)
    - Low latency and reliable sensor->control pipeline

https://github.com/ros-planning/moveit2/issues/277
---

## Improving MoveIt 1 with MoveItCpp

Direct access to core MoveIt components
- Support for multiple planning pipelines
- Support for running multiple robots
    - More flexible configuration

![architecture width:900](../static/arch.png)
---

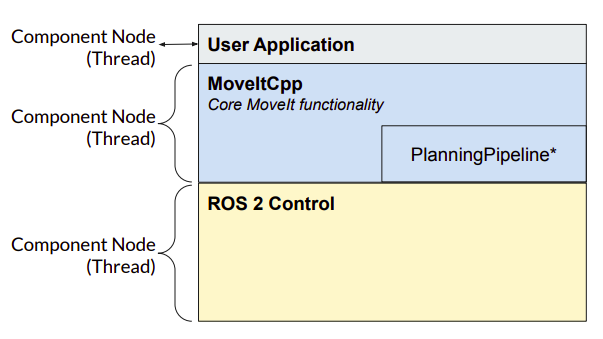

## Architecture
(Milestone 3)

Leverage ROS 2 component nodes for better performance

![components width:200](../static/components.png)
---

## Hybrid Planning

https://github.com/ros-planning/moveit2/issues/300

---

.cols[
.fifty[
### Global Planning

- Pros
    - Plan around complex obstables
    - Avoid getting stuck in local minima
    - Complete: **will** find solution if exists
- Cons
    - Slower computation time
    - Not Real-time
    - Not deterministic
]

.fifty[
### Local Planning

- Pros
    - Fast / reactive
    - Deterministic
    - Well suited for visual servoing
- Cons
    - Gets stuck in local minima
    - Fewer collision safety guarantee
]
]

---

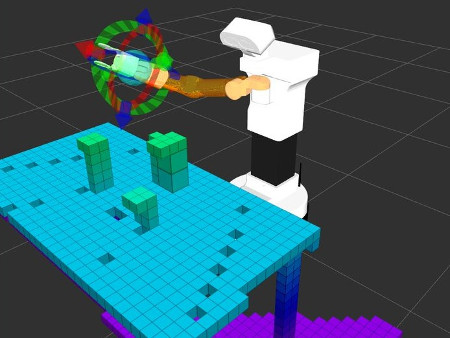

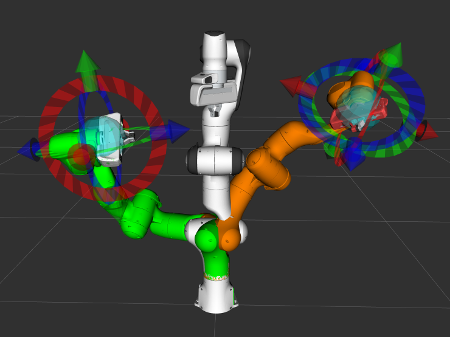

## Key Concepts

![width:400px](../static/plan_scene1.jpg) ![width:400px](../static/plan_scene2.png)

---

## Key Concepts

#### Robot State
- contains geometry information and joint values

#### Current State Monitor
- update robot state by subscribing to `/joint_states` (provided by driver)

#### Planning Scene
- collision checking and constraints checking

#### Planning Scene Monitor
- updates planning scene through ROS interfaces

#### Controller Interface
- planning trajectories published using [`FollowJointTrajectory`](http://docs.ros.org/api/control_msgs/html/action/FollowJointTrajectory.html) (consumed by driver)

---

## MoveIt configurations

#### URDF - Universal Robot Decsription Format
- safety controller
- meshes used for collision checking
- [UR5 description](https://github.com/ros-industrial/universal_robot/blob/kinetic-devel/ur_description/urdf/ur5.urdf.xacro)

#### SRDF - Semantic Robot Description Format
- Joint group (collection of joints and links)
    - as joints, links or serial chain
- Virtual and passive joints
- Robot poses
- Self-collision
- [UR5 SRDF](https://github.com/ros-industrial/universal_robot/blob/kinetic-devel/ur5_moveit_config/config/ur5.srdf)

#### Other configurations
 - joint limits, kinematicas and motion planning plugins

---

## MoveItCpp API

```cpp
// \brief load the robot model,
//        configure the planning pipeline from ROS 2 parameters and
//        initialize defaults
moveit_cpp_ = std::make_shared<moveit::planning_interface::MoveItCpp>(node_);

// \brief associated to a planning group
//          used to setup the motion plan request and
//          call the low-level planner
moveit::planning_interface::PlanningComponent arm("ur5_arm", moveit_cpp_);

/** \brief Set the goal constraints generated from target pose and robot link */
geometry_msgs::PoseStamped target_pose1;
target_pose1.header.frame_id = "base_link";
target_pose1.pose.orientation.w = 1.0;
target_pose1.pose.position.x = 0.28;
target_pose1.pose.position.y = -0.2;
target_pose1.pose.position.z = 0.5;
arm->setGoal(target_pose1, "ee_link");

/** \brief Set the goal constraints generated from a named target state */
arm->setGoal("ready");
```
---

## Constraint planning

Used to
- constrain robot motion
- define planning goals

```cpp
kinematic_constraints::JointConstraint
kinematic_constraints::OrientationConstraint
kinematic_constraints::PositionConstraint
kinematic_constraints::VisibilityConstraint
```
https://www.youtube.com/watch?v=qEketOee7_g
---

## Constraint planning

e.g. Planning with Path Constraints specified for a link on robot

```cpp
moveit_msgs::OrientationConstraint ocm;
ocm.link_name = "panda_link7";
ocm.header.frame_id = "panda_link0";
ocm.orientation.w = 1.0;
ocm.absolute_x_axis_tolerance = 0.1;
ocm.absolute_y_axis_tolerance = 0.1;
ocm.absolute_z_axis_tolerance = 0.1;
```
set this a path constraint for the planning group
```cpp
moveit_msgs::Constraints test_constraints;
test_constraints.orientation_constraints.push_back(ocm);
move_group_interface.setPathConstraints(test_constraints);
```

---

## Cartesian planning

- end effector follows an exact path along a surface (welding and painting applications)
- list of waypoints specified for the end-effector to go through
- MoveIt! now supports real-time & global, collision-aware cartesian planning

#### Desirable properties
- Completeness, Underconstrained, Planning ahead, Realtime

https://picknik.ai/cartesian%20planners/moveit/motion%20planning/2021/01/07/guide-to-cartesian-planners-in-moveit.html
---

## Cartesian planning

```cpp
std::vector<geometry_msgs::Pose> waypoints;
waypoints.push_back(start_pose);

geometry_msgs::Pose way_pose;
waypoints.push_back(way_pose);

way_pose.position.y -= 0.2;
waypoints.push_back(way_pose);  // right

way_pose.position.z += 0.2;
way_pose.position.y += 0.2;
way_pose.position.x -= 0.2;
waypoints.push_back(way_pose);  // up and left
```
now compute trajectory with interpolation
```cpp
moveit_msgs::RobotTrajectory trajectory;
const double jump_threshold = 0.0;
const double eef_step = 0.01;
double fraction = move_group_interface.computeCartesianPath(waypoints, eef_step, jump_threshold, trajectory);
```

https://ros-planning.github.io/moveit_tutorials/doc/move_group_interface/move_group_interface_tutorial.html#cartesian-paths
---

## Getting involved

https://github.com/ros-planning/moveit2

- Adding New Features
- Helping with MoveIt 2 Port
- Financial contributions via code sprints and grants
- Enhancing Documentation
- Reporting & Fixing Bugs

---
