ROS 2 bags and PlotJuggler

1. Introduction

A ROS 2 bag stores timestamped messages published on ROS topics. You can use a bag to repeat an experiment, inspect what happened, or analyze signals without running the original system again.

In this exercise, you will:

  1. Record commands and poses from Turtlesim.

  2. Inspect and replay the recording with ros2 bag.

  3. Load the same bag into PlotJuggler and plot the recorded values.

2. Requirements

This exercise continues from ROS 2 CLI and Turtlesim. Install the required packages if they are not already available:

sudo apt update
sudo apt install ros-$ROS_DISTRO-turtlesim \
  ros-$ROS_DISTRO-rosbag2 \
  ros-$ROS_DISTRO-plotjuggler-ros

Source ROS 2 in every new terminal:

source /opt/ros/$ROS_DISTRO/setup.bash

3. Start Turtlesim

Start the simulator in the first terminal:

ros2 run turtlesim turtlesim_node

Start keyboard teleoperation in a second terminal:

ros2 run turtlesim turtle_teleop_key

Select the teleoperation terminal and verify that the arrow keys move the turtle.

4. Record a bag

For this example, record two topics:

  • /turtle1/cmd_vel contains the velocity commands sent to the turtle.

  • /turtle1/pose contains the resulting position, orientation, and velocity.

In a third terminal, create a directory for the recordings and start recording:

mkdir -p ~/dev_ws/bags
cd ~/dev_ws/bags
ros2 bag record -o turtlesim_bag --topics \
  /turtle1/cmd_vel /turtle1/pose

Move the turtle for approximately 15 seconds. Include straight segments and turns so that the plots contain varied data. Return to the recording terminal and press Ctrl+C to stop.

The output name must be unique. If turtlesim_bag already exists, choose a new name such as turtlesim_bag_02.

4.1 What was created?

The command creates a bag directory rather than a single file:

turtlesim_bag/
├── metadata.yaml
└── turtlesim_bag_0.mcap

Depending on the configured storage plugin, the data file may use another extension, such as .db3. The metadata.yaml file describes the storage format, topics, message types, duration, and message counts.

5. Inspect the bag

Display a summary of the recording:

ros2 bag info ~/dev_ws/bags/turtlesim_bag

Check that both topics are listed and that each has a nonzero message count. The pose topic normally contains more messages because Turtlesim publishes it continuously, while the command topic is published when teleoperation sends a command.

6. Replay the movement

Keep the simulator running, but stop the keyboard teleoperation node with Ctrl+C so that it does not publish commands during playback. Reset the turtle to its initial state:

ros2 service call /reset std_srvs/srv/Empty "{}"

Replay only the command topic:

ros2 bag play ~/dev_ws/bags/turtlesim_bag \
  --topics /turtle1/cmd_vel

The turtle should repeat approximately the same motion. Only the command topic is replayed because /turtle1/pose is an observation, not a command. Replaying the recorded pose would not move Turtlesim and would create a second publisher for the topic while the simulator is running.

Useful playback options include:

# Play at half speed
ros2 bag play ~/dev_ws/bags/turtlesim_bag \
  --topics /turtle1/cmd_vel --rate 0.5

# Repeat until Ctrl+C is pressed
ros2 bag play ~/dev_ws/bags/turtlesim_bag \
  --topics /turtle1/cmd_vel --loop

Use ros2 bag play --help to see all options supported by your ROS 2 version.

7. Analyze the bag with PlotJuggler

PlotJuggler turns numeric fields from recorded messages into time series. It can read the bag directly, so Turtlesim does not need to be running and you do not need to play the bag first.

7.1 Start PlotJuggler

Launch PlotJuggler from a terminal in which ROS 2 is sourced:

sudo apt install ros-jazzy-plotjuggler-ros
ros2 run plotjuggler plotjuggler

The plotjuggler-ros package supplies the ROS 2 bag loader and message parser.

7.2 Load the recording

  1. Select Open data file in PlotJuggler.

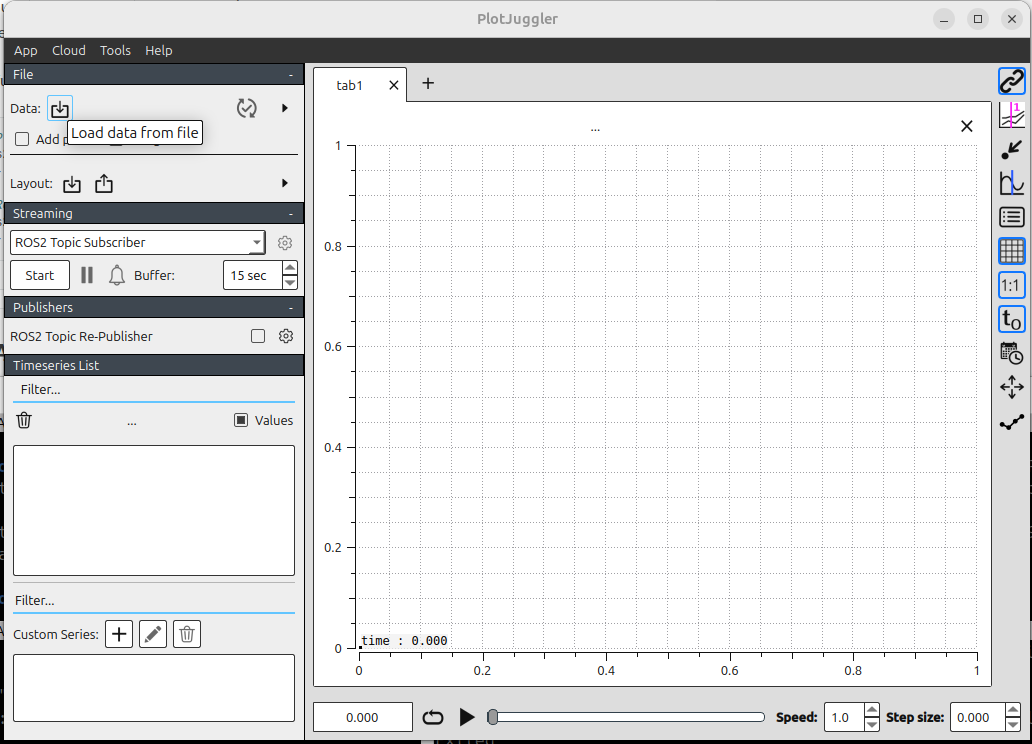

    PlotJuggler Open data file dialog

  2. Open ~/dev_ws/bags/turtlesim_bag/metadata.yaml. Select metadata.yaml, rather than the .mcap or .db3 storage file, when using the ROS 2 bag loader. The loader reads the metadata to locate the storage file and determine its format.

  3. In the topic-selection dialog, select /turtle1/cmd_vel and /turtle1/pose, then accept the selection.

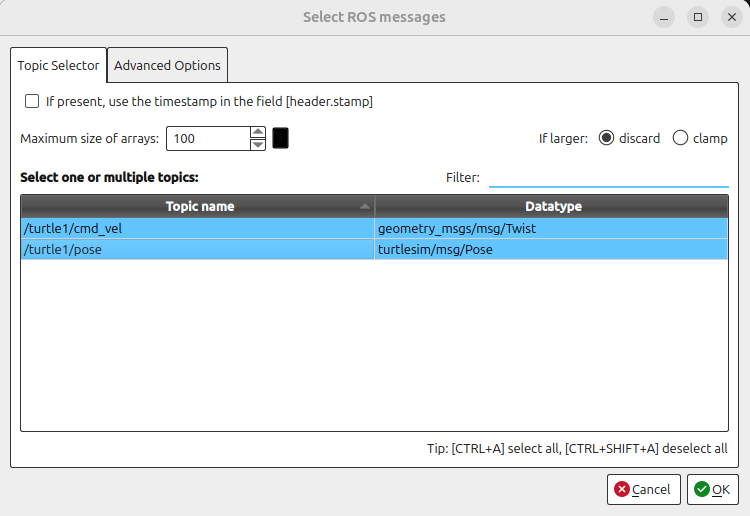

    PlotJuggler topic-selection dialog

  4. Wait for the bag to load. The decoded numeric fields appear in the curve list on the left. You can then drag & drop the field to the grid.

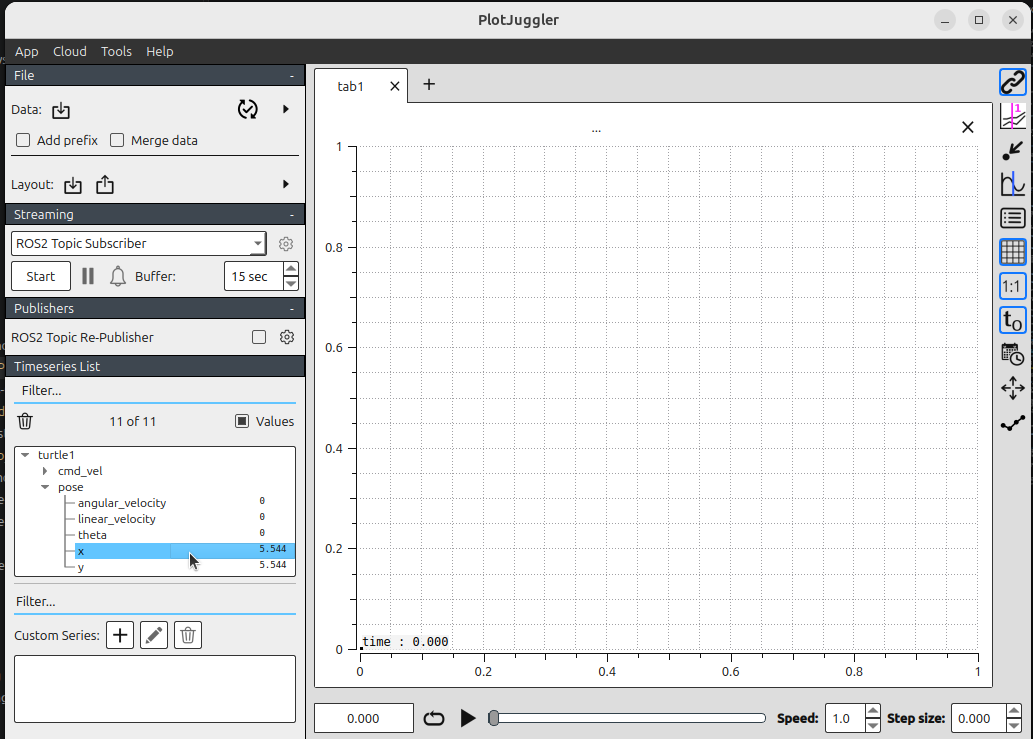

    Dragging a field onto the PlotJuggler grid

7.3 Create useful plots

Drag fields from the curve list onto a plot area. Depending on the PlotJuggler version, field names may use dots or slashes as separators. Look for these message paths:

  • /turtle1/pose/x and /turtle1/pose/y: position on the Turtlesim canvas.

  • /turtle1/pose/theta: orientation in radians.

  • /turtle1/pose/linear_velocity and /turtle1/pose/angular_velocity: measured motion.

  • /turtle1/cmd_vel/linear/x: commanded forward velocity.

  • /turtle1/cmd_vel/angular/z: commanded angular velocity.

Suggested layout:

  1. Plot pose x and y together to compare how the position changes.

  2. Plot theta in a separate panel because it uses radians.

  3. Plot commanded linear/x with measured linear_velocity.

  4. Plot commanded angular/z with measured angular_velocity.

Use the time slider, zoom controls, and tracker to inspect individual events. Notice how changes in the command signals correspond to changes in the pose and measured velocity.
