ROS 2 GUI tools: rqt and rqt_graph

1. Introduction

rqt is a graphical framework that hosts ROS 2 tools as plugins. rqt_graph visualizes the active nodes and the topics connecting them. These tools complement the ROS 2 CLI and are useful when developing or debugging a system.

See the official RQt overview and usage guide for more information.

2. Install the tools

The ROS 2 desktop installation normally includes rqt. If the commands are missing, install the framework and its common plugins:

sudo apt update
sudo apt install ros-$ROS_DISTRO-rqt ros-$ROS_DISTRO-rqt-common-plugins

3. Prepare an example graph

Start Turtlesim in one terminal:

ros2 run turtlesim turtlesim_node

Start keyboard control in a second terminal:

ros2 run turtlesim turtle_teleop_key

4. Explore rqt

Start the plugin framework:

rqt

Plugins are available from the Plugins menu. Useful plugins include:

  • Introspection → Node Graph

  • Services → Service Caller

  • Topics → Topic Monitor

  • Configuration → Dynamic Reconfigure, when supported by the node

The exact menu contents depend on the rqt packages installed on the computer.

5. Visualize nodes with rqt_graph

Open the graph as a standalone tool:

rqt_graph

Alternatively, open Introspection → Node Graph from the rqt Plugins menu. With Turtlesim and keyboard teleoperation running, the graph shows the /teleop_turtle and /turtlesim nodes connected through /turtle1/cmd_vel.

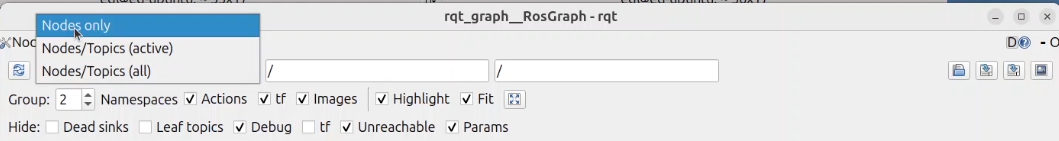

rqt_graph displaying only nodes

Use the controls above the graph to:

  • refresh discovery

  • include or hide topics

  • filter namespaces

  • show active connections only

Move the turtle with the keyboard and compare the graph with:

ros2 node info /teleop_turtle
ros2 node info /turtlesim

6. Call a service from rqt

Open Services → Service Caller. Select the /spawn service and enter values for x, y, theta, and name.

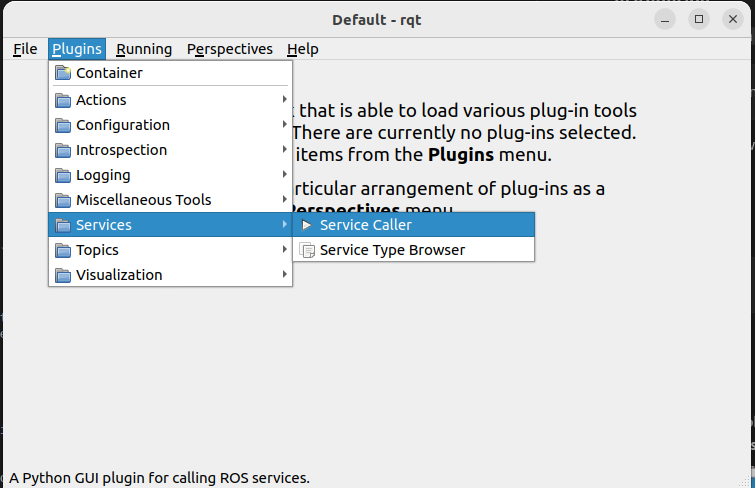

The rqt Service Caller plugin

Press Call to send the request. The response contains the name of the created turtle.

Calling the spawn service and displaying its response

Compare this operation with the equivalent CLI command:

ros2 service call /spawn turtlesim/srv/Spawn \
  "{x: 2.0, y: 2.0, theta: 0.0, name: second_turtle}"

7. Exercise

  1. Run the publisher and subscriber created in the previous exercise.

  2. Open rqt_graph and locate both nodes and their shared topic.

  3. Stop the subscriber and refresh the graph.

  4. Restart it and verify that the connection returns.

  5. Use a topic-related rqt plugin to inspect the published values.

  6. Start Turtlesim and call one of its services through rqt.

Use the CLI to cross-check what the GUI shows:

ros2 node list
ros2 topic list -t
ros2 service list -t
