RRBot

Reference from ros2_control_demos

RRBot, or Revolute-Revolute Manipulator Robot, is a simple 3-linkage, 2-joint arm used to demonstrate various features.

It is essentially a double inverted pendulum and demonstrates some control concepts within a simulator. It was originally introduced for Gazebo tutorials.

For example_1, the hardware interface plugin is implemented with only one interface:

  • Communication is done using proprietary API to communicate with the robot control box.

  • Data for all joints is exchanged at once.

  • Example: KUKA RSI

The RRBot URDF files can be found in the description/urdf folder.

Tutorial Steps

0. Prerequisites

Ensure you have the following packages installed:

cd
mkdir -p colcon_control_ws/src
cd colcon_control_ws/src
git clone -b demo/tricycle https://github.com/ipa-vsp/ros2_control_demos.git
cd ..
rosdep install --from-paths src -iry
colcon build --symlink-install
source install/setup.bash

1. Check RRBot Description Launch

(Optional) To verify that RRBot descriptions are working properly, run:

ros2 launch ros2_control_demo_example_1 view_robot.launch.py

In another terminal, launch the GUI:

source /opt/ros/${ROS_DISTRO}/setup.bash
ros2 run joint_state_publisher_gui joint_state_publisher_gui

Start RViz:

source /opt/ros/${ROS_DISTRO}/setup.bash
rviz2 -d src/ros2_control_demos/ros2_control_demo_description/rrbot/rviz/rrbot.rviz

Note: Warning Invalid frame ID "odom" passed to canTransform is expected. It happens while joint_state_publisher_gui is starting.

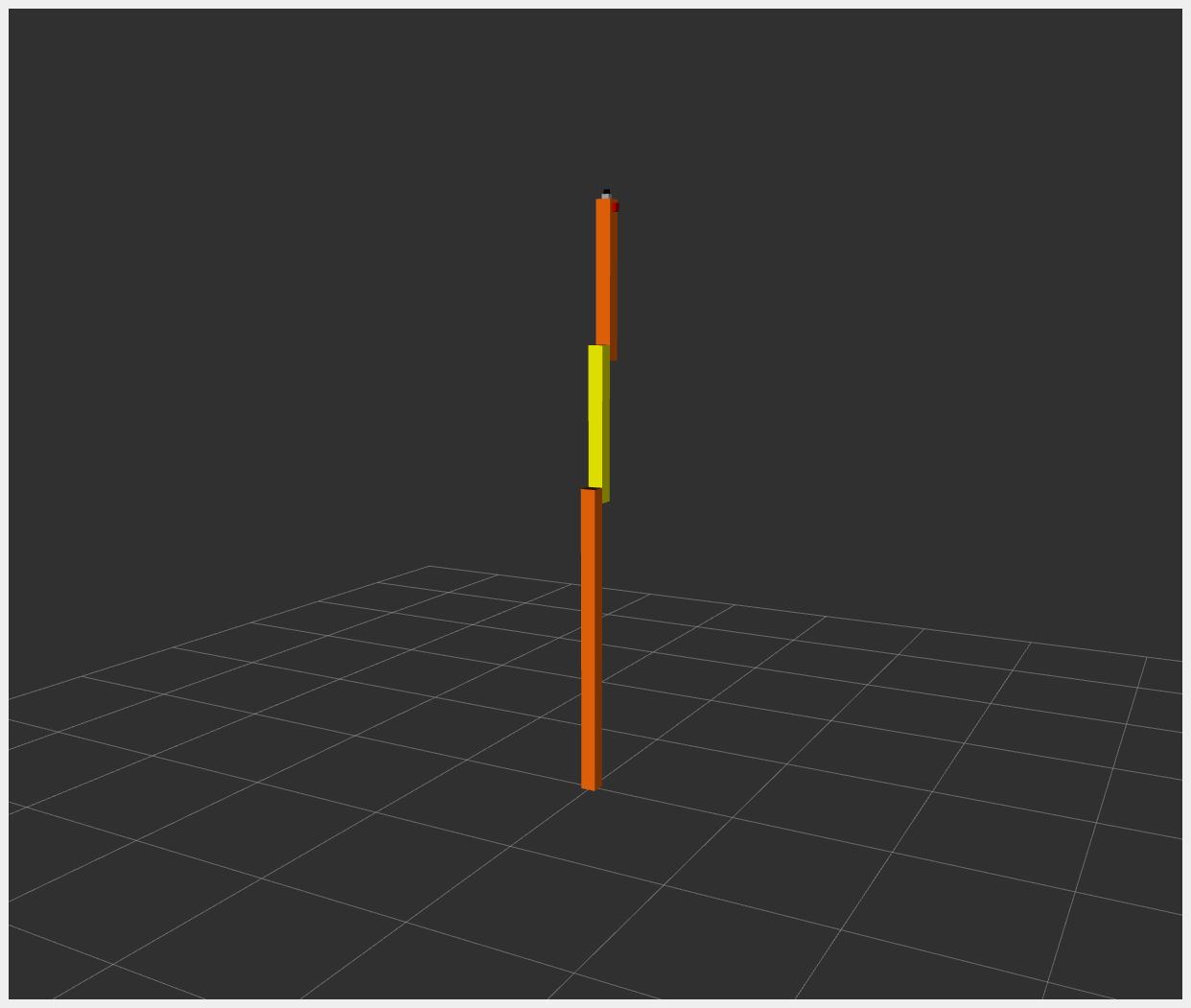

RRBot

Once working, stop RViz using CTRL+C.

2. Start RRBot Launch

ros2 launch ros2_control_demo_example_1 rrbot.launch.py

This starts the robot hardware, controllers, and opens RViz. If you see two orange and one yellow rectangle in RViz, it is working.

3. Check Hardware Interface

ros2 control list_hardware_interfaces

Expected output:

command interfaces
      joint1/position [available] [claimed]
      joint2/position [available] [claimed]
state interfaces
      joint1/position
      joint2/position

4. Check Running Controllers

ros2 control list_controllers

Expected output:

joint_state_broadcaster[joint_state_broadcaster/JointStateBroadcaster] active
forward_position_controller[forward_command_controller/ForwardCommandController] active

5. Send Commands

a. Using CLI:

ros2 topic pub /forward_position_controller/commands std_msgs/msg/Float64MultiArray "data:
- 0.5
- 0.5"

b. Using Demo Node:

ros2 launch ros2_control_demo_example_1 test_forward_position_controller.launch.py

You should see motion in RViz and terminal logs like:

[INFO] Writing commands:
  0.50 for joint 'joint2/position'
  0.50 for joint 'joint1/position'

To verify joint state outputs:

ros2 topic echo /joint_states
ros2 topic echo /dynamic_joint_states

6. Switch to Joint Trajectory Controller

Load controller:

ros2 control load_controller joint_trajectory_position_controller $(ros2 pkg prefix ros2_control_demo_example_1 --share)/config/rrbot_jtc.yaml

List controllers:

ros2 control list_controllers

Expected:

joint_state_broadcaster[...] active
forward_position_controller[...] active
joint_trajectory_position_controller[...] unconfigured

Configure controller:

ros2 control set_controller_state joint_trajectory_position_controller inactive

Alternatively:

ros2 control load_controller --set-state inactive joint_trajectory_position_controller $(ros2 pkg prefix ros2_control_demo_example_1 --share)/config/rrbot_jtc.yaml

Activate controller:

ros2 control switch_controllers --activate joint_trajectory_position_controller --deactivate forward_position_controller

Verify:

ros2 control list_controllers

Should return:

joint_state_broadcaster[...] active
forward_position_controller[...] inactive
joint_trajectory_position_controller[...] active

Launch demo node:

ros2 launch ros2_control_demo_example_1 test_joint_trajectory_controller.launch.py

7. Use rqt_joint_trajectory_controller GUI

ros2 control load_controller joint_trajectory_position_controller $(ros2 pkg prefix ros2_control_demo_example_1 --share)/config/rrbot_jtc.yaml --set-state inactive && ros2 control switch_controllers --activate joint_trajectory_position_controller --deactivate forward_position_controller

Launch GUI:

ros2 run rqt_joint_trajectory_controller rqt_joint_trajectory_controller

Features:

  • Dropdown to select controller

  • Sliders to set joint positions

  • Control execution time

  • Send trajectory commands

Files Used for This Demo

Controllers in This Demo

  • Joint State Broadcaster (docs)

  • Forward Command Controller (docs)

  • Joint Trajectory Controller (docs)
