industrial_calibration::TargetFinderOpenCV Class Reference

Typedef for a target finder based on OpenCV that finds 2D targets in an RGB image.

#include <target_finder.h>

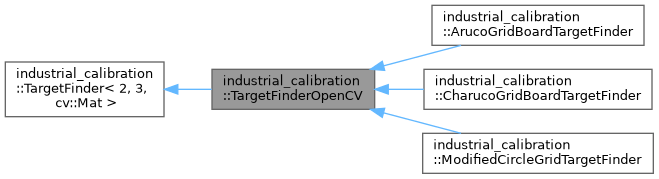

Inheritance diagram for industrial_calibration::TargetFinderOpenCV:

Public Member Functions
void	drawTargetOrigin (const cv::Mat &image, const TargetFeatures2D &features, const double axis_length=0.1) const
	Draws the target origin X and Y axes on the image.
Public Member Functions inherited from industrial_calibration::TargetFinder< 2, 3, cv::Mat >
virtual TargetFeatures< SENSOR_DIM >	findTargetFeatures (const cv::Mat &measurement) const=0
	Finds the features of the target in a sensor data measurement (e.g., 2D image)
virtual cv::Mat	drawTargetFeatures (const cv::Mat &sensor_data, const TargetFeatures< SENSOR_DIM > &target_features) const
	Draws the target features on an input sensor data measurement (e.g., a 2D image)
virtual const Target< SENSOR_DIM, WORLD_DIM > &	target () const=0
	Returns the definition of the target used by the finder.
Correspondence< SENSOR_DIM, WORLD_DIM >::Set	findCorrespondences (const cv::Mat &measurement) const
	Finds correspondences from a sensor data measurement (e.g., 2D image)
Correspondence< SENSOR_DIM, WORLD_DIM >::Set	findCorrespondences (const std::vector< cv::Mat > &measurements) const
	Finds correspondences from a set of sensor data measurements (e.g., 2D images)

Additional Inherited Members
Public Types inherited from industrial_calibration::TargetFinder< 2, 3, cv::Mat >
using	Ptr = std::shared_ptr< TargetFinder >
using	ConstPtr = std::shared_ptr< const TargetFinder >

Member Function Documentation

drawTargetOrigin()

void industrial_calibration::TargetFinderOpenCV::drawTargetOrigin	(	const cv::Mat &	image,
		const TargetFeatures2D &	features,
		const double	axis_length = 0.1
	)		const

This method computes the homography matrix between the detected target features and the known target features and uses it to project the X and Y axes of the target origin onto the image.
